The ultra-thin relay series adopts a compact design, which can effectively save cabinet space. The DIN rail plug-in design greatly reduces maintenance costs.
| TYPE NO. | YE41F-1Z-C4-230 | ||
| Power Load | Current | A | 6 |
| voltage | VAC | 250 | |
| Input Voltage | VAC/DC | 230 | |
| Dielectric Strength | V/min | 4000VAC V/S Coil/Contact | |
| 2500VAC V/S BetweenContacts | |||
| Screw Torque | Nm | 0.8-1.0. | |
| Size Of Wire | AWG/mm2 | 20-14/0.5-2.5 | |
| Temperatue Range | ℃ | -35~+ 70 | |
| Net Weight | g | 28.6 | |
| Contact Resistance | mΩ | ≤50mΩ | |
| Insulation Resistance | mΩ | > 100mΩ以上(500VDC Tramegger) | |
| Plug Durablity | Times | 10000 (Cycles) | |
| ROHS Compliance | / | ROHS | |
| Flame Retardant | / | UI94-V1 | |
| Shell Plastic | / | PA6+G30F | |
| Insert material | / |
High precision phosphor copper The surface of the tin plating |
|

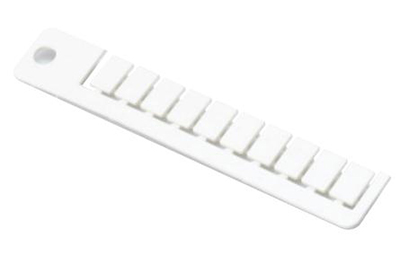

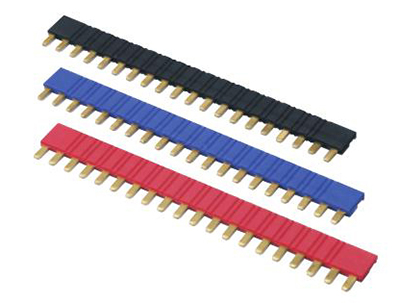

| Tally (YU10NP) | Connecting strip (YU20B) | |

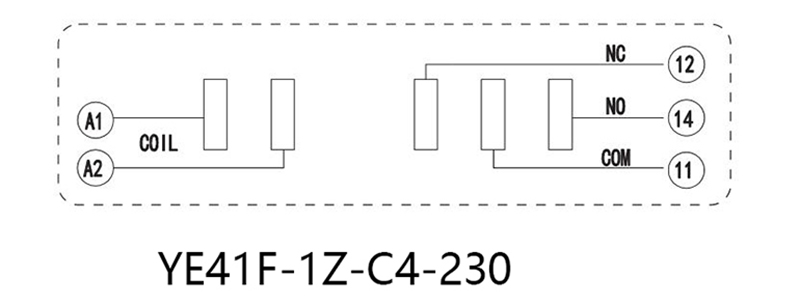

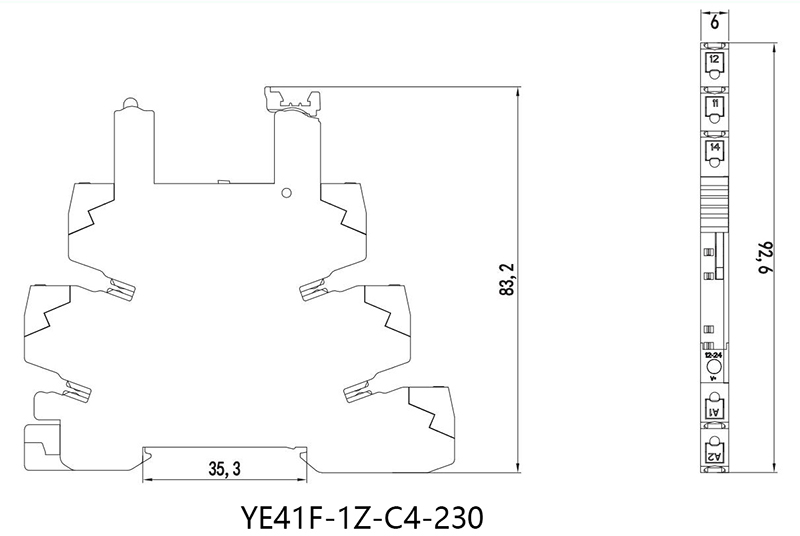

| TYPE NO. |  |
 |
| YE41F-1Z-C4-230 |
